My latest build & commission work. Probably my last build of the year too. Its a 1/35 UCHG Core Fighter from Bandai, also a Ver. GFT which I think has a nicer set of waterslide decals compared to the usual hardgraph version. Its an OOTB build with a G3 (gray) color scheme as requested by the client. Also decided to give some subtle shading and highlights just to give some depth to the monotonous scheme. Its a very nice model kit to build and paint, assembly is perfect as expected & not much sealing is needed. My only advice/caution to other modelers out there who will also build this is to be a bit careful on the enamel wash, some parts gets brittle easily after the exposure to enamel thinner/paint. Aside from that its a must have kit!

More photos at -- Mechaion Designs

Happy Holidays!

Started working on my next commission build. This time its a UC Hardgraph 1/35 Core Fighter from Bandai. So far so good, as expected perfect fitting and the amount of details is quite impressive specially in the cockpit area. Assembly is also great, very minimal sealing and masking required.

Size comparison with an old-school 1/144 Core Fighter model kit.

My longest reigning shelf queen is done! It’s an MG Kampfer from Bandai. Took me some time to finish this due to on and off progress. I made some modifications on the proportion since I find the OOTB kit to be a little fat/bulky for my taste. First is I extended the waist for about 2.5mm, same with the crotch area. Also did some armor trimming to expose some of the internals especially on the torso area. Reshaped the medial and lateral leg armors. Added some after-market parts (round molds & o-bolts), styrene rods/strips and panel lines to give additional details. Color scheme was retained coz' I still want to preserve the original look except for the red shoulder armor which I got the idea from the Ifreet Custom.

MG Kampfer before painting.


More photos at -- Mechaion Designs

Almost there...

Here's my latest build, its a 1/100 NG Exia. I also used the works of A2 Crafts and Ewac Zone as reference. My goal here is to give the kit some details to be a bit closer to its MG counterpart. Here are some of the WIP photos;



- Addition of panel lines.

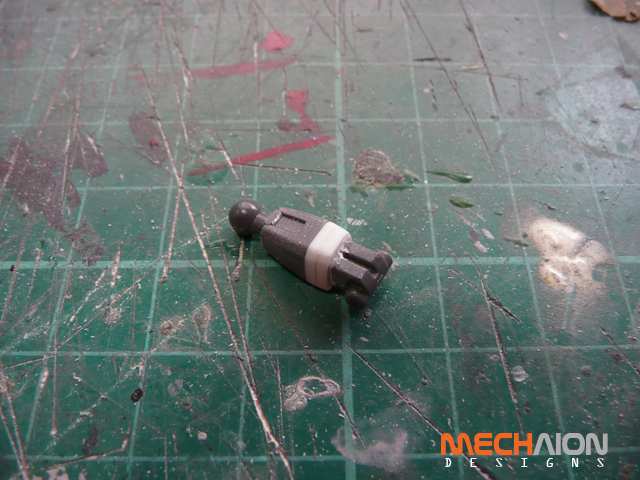

-Extended the neck joint by 2mm.

-Lowered the peg connecting the thighs and waist, reinforcing it with a copper wire and plastic sheets.





-Pre-painting modification of the thighs.

-Hollow parts filled with epoxy putty then sanded.

-I also used Wave's O-bolt on the torso for added details.

-Sharpen the weapons.

More photos of the finished kit at -- Mechaion Designs

It's nice to build my own kits from time to time. But still thinking if Im going to keep or sell this one. :)

Here's the 3rd and final kit of the commission builds I took. Also my first Hard Graph model kit from Bandai. As a fan of armour kits I find this one very impressive specially the perfect fitting and good amount of details. My only gripe is the quality of plastic is far compared with other brands that produce military kits such as Tamiya, Trumpeter and Dragon, which more resistant to enamel thinner or turpentine.

About the build... primed with Mr Surfacer 1000 and painted with both Gaianotes and Mr Color lacquer paints. Pinwash applied using Tamiya enamels. Filters and Colour variation was done using Artist Oils. Dusting was also achieved using powdered pigments. Honestly I find the whole build a bit clean for my taste. If it was up to me I like to add more weathering (larger chippings, rust and mud) but the client only wants a subtle amount of it.

With all 3 commission builds done, I can finally proceed and finish my own kit which is already 2 years old in the making due to on & off progress.

More photos at -- Mechaion Designs

Back for some more and probably last update for this build...

Chippings applied (handbrushed with Dark Gray (Gunze) lacquer paint.

Almost home! Here's what I did;

-Pin wash using Tamiya Dark Brown Enamel

-Used artist oils for filters

-I also used oil paints for colour variation/paint fading.

-Gloss coat applied

-Decals

Will still have to add some pigments for weathering the lower hull and tracks and a final flat coat.

Pre-shading started by painting the edges and panels black then toning it down with white.

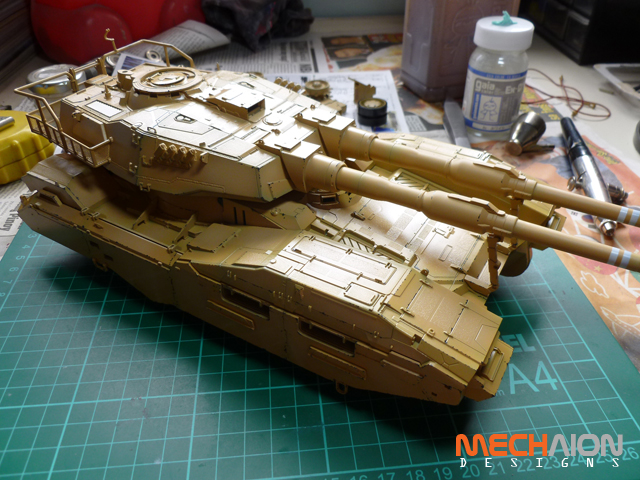

Base coat applied, I used Mr Color Sandy Brown.

Then highlighted with a mixture of Sandy Brown + Yellow + White.

Here's another view, highlights are much more visible.

Back to work! The kit was primed using Mr. Surfacer 1000. Preparation for the shading also done, I painted the panels and edges with black lacquer paint. Theory here is when I apply the base coat which is somewhat yellowish the layer hitting the black surface will give the kit a nice shade or shadow.

Since I dont want the contrast of the base paint to be that strong I applied White on the surface just to tone down the black, turning it into gray. This will also make the base coat pop even better and coverage a bit easier.

Same goes with the wheels...

Progress is quite slow due to the cold weather which is giving me a hard time due to condensation and making my AB to spit water.

Here's the size of the Semovente compared to a KV-1. Its just that massive and Im liking it.

Bandai even provided some photo etched parts for additional details which I think are great.



PE parts for the "cage".

I think these PE chains for the smoke grenades are the hardest part of the build for me. They are so small and quite fragile to work with especially if you have big hands.

Dry fitting stage is complete and ready for priming.

Time to face this beast! This is the 3rd kit of the 3 commissions that was given to me, first was the Exass then the Gunbarrel. Will be out of the box as usual. For the color and finish the client wanted an artic scheme with minimal weathering, but I personally dont like the idea, I want to retail the desert scheme of the tank and put on some heavy weathering. As an armor kit fan, I know tanks like this screams for weathering. So will still persuade him with my idea and hopefully convince him. :)

Still on a dry-fitting stage. Very impressed with Bandai, the construction is just flawless. Unlike other armors like Tamiya and Trumpeter, this one is mostly snapfitted with minimal gluing. Its also well detailed and the size is just massive. Will try to compare it to another armor once I'm done snapping all the parts together.

That's all for now. :)

Well, here's my first attempt on figures... Its a 1/16 Unterscharfuhrer figure by Dragon. Love this brand, the details were great and assembly is fairly easy. The only comment I can give is there are some gaps on the arms and legs when assembled but I think its pretty standard for these types of kits and nothing putty cant fix. Like I said in my previous post, the goal here is to make it a cyborg-zombie looking soldier. I used mostly acylic paints as base coat for the uniform, skin and details. Followed by artists oils for blending. Still far from perfect but I really had fun doing this project and for sure this will not be my last figure build.

As usual more photos at -- Mechaion Designs

I applied a black acrylic wash on the figure first to raise the details, so that I can paint it a bit easier by seeing  the borders.

First time to paint skin tone, must admit its a trial and error process. I used acrylics as the base coat and oils for blending/highlights. I was also trying to simulate a zombie-ish looks thats why its sort of pale/grayish looking.

Here's a failed attempt on using acrylics to do the dark and light areas on the uniform. Somehow I cant get the effect that I want so I still resorted to a familiar medium which is oils to do most of the shading.

So far, this is what I got after the highlights and shading plus detail painting.

Here's my latest build, actually a fun build. Also my contribution to Pla-zone's "Back to Basics" GB and will be donated/lend to Mechapinoy's kit pool project. This one is an old HG GM sniper which I poorly built & painted way back when I was new to the hobby. I decided to restore it since I dont want to see it just inside a box with other scraps and collecting dust. At the same time help the 2 communities with their respective projects. So about the build, as usual OOTB,  AB'ed with Gaianotes laquer paints (change the color scheme too), weathering was achieved using artist's oils and Tamiya weathering master (dusting on the feet & lower legs).

More photos at the main gallery -- Mechaion Designs

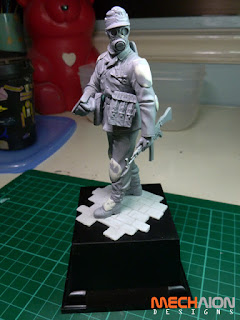

Here's a small update on my first 1/16 figure build. So far I've sculpted the gas mask and some armour /guards, I used Tamiya Epoxy Putty by the way. For the details on the mask I ended up using different Kotobukiya MSG's. Good thing is I still have some spares which I think fit the scale. I also replaced the right hand with a manipulator (from my HGUC Asshimar). For the flooring, I used a 1.5mm plastic sheet, cut and scribed. Got the idea from Julius of Pla-Zone.

Here's the 2nd model kit of the 3 commissions I mentioned in my "Exass" post. Its a 1/144th scale Gunbarrel Striker from the Gundam Seed MSV series. Still out of the box, only the color was changed (originally orange and white). The client prefers a grayish - low visibilty scheme, but I find it a bit dull. So what I did was to mix some blue with the light gray so it wont be that boring. After market decals were also used for extra details.

More at the main gallery -- Mechaion Designs

My contribution to TK's Concept Model inhouse. Its a 1/16 Unterscharfuhrer figure from Dragon. I decided to use this subject for a simple reason, I dont have the SB skill like some of the guys of MP LOL. Will just have modify it to look a bit more steam punk-ish/post apocalyptic looking soldier. Got the idea from the zombie Nazis (Sucker Punch) and Francesco Benedettini's "Cyborg Wars" builds. This is my first figure build, so im trying to do some reading on how to build and paint these type of kits.

Till next update.

2nd kit for the year and 1st of the 3 commissions I signed up for. First attempt on an EX Model, and I really find it impressive with regards to the details and assembly. My only gripe is almost all the parts are system injected but nothing a good old masking cant do. The build is only OOTB, only pre-painting modifications were done.

More at the main gallery -- Mechaion Designs

Commission no. 2 done! 1 more to go and I can go back to all my pending builds.

Been a bit better after taking a break from building model kits due to a slipped disc injury. This EX Model Exass is a commission build and a great kit to start modeling again (slowly). Just an OOTB finish, just added some metallic colors here and there and decals to give it some extra details. I just have to finish a 4 drones/dragoons or whatever they call it and its all done.

Been out of the modeling scene for quite sometime due to my spine injury. So here's an overdue kit which I finished a couple of months ago. Its a 1/144 HG Throne Eins from the 00 series. No extreme modifications were done. I just followed my old Throne Drei build, which involves extending the waist and neck, additional panel lines, rivet holes and pla strips for details. Only the Throne Zwei left and the Trinity is complete. :)

More at the main gallery -- Mechaion Designs
